Thanks for the new year's Golden Rooster New Year's evaluation
During this time watching the news, the traditional notebook market has gradually shrunk. Windows tablet sales are on the rise. Andrews apple sales have fallen. Thin and light has become the direction of traditional notebooks. Since the atom atom of the intel atom subsidies, there is a Dabo's cheap tablet appeared on the market with uneven quality. Each of them had organic sea tactics to attract consumers, but it was also dazzling.
Unlike the atom z series and the various 2g-4g memory platforms used in the tablet below 1,000 yuan, the Taipower tbook 16 power uses the non-subsidized version of the atom's most high-end x7 8750, and is equipped with 8g of memory, which is what this article wants to evaluate. main content. .
Borrow an official picture, configure at a glance
For the Taipower brand, in fact, I always thought it was Taiwan, until I wrote this test to find information to understand the real domestic products, under the business group's brand, this brand also includes under the brand of Meteor and Mou. Tbook 16 The power package is still a sense of design, simple and not messy, see the intel logo will be "lights, lights and other lights"
The other side lists the detailed configuration
Matching magnetic keyboard additional box
Basically tends to the design of the surface keyboard
The inside of the box is protected in place. The shockproof sponge and the protective bag of the Taipower logo should still be the electrostatic protection bag. Pay attention to ~ (Orange logo is more energetic?)
Each interface and key back are printed with tips
Not many accessories, simple instructions, warranty card, charger and usb cable
A film is attached to the screen at the factory, and a tempered glass film is available on Taobao.
Magnesium-aluminum alloy body, not exquisite workmanship. There is only logo on the back.
500w pixel camera on the back
Left TF card slot with protective cover, followed by Micro HDMI, power connector, Type-C, USB 3.0 and headphone jack
Open the back of the bracket is also marked
The logo and serial number are below the bracket, and the bottom is the interface for connecting the keyboard.
The smart cover's keyboard feels fairly normal, but the touchpad's flat design makes it unbearable and can only be used as an emergency. Fortunately, with Bluetooth on the hardware, can bring a small Bluetooth mouse at work, or else the productivity will be abolished by more than half
Good overall workmanship
Also with encoding...
After the fit, there are two angles, the plane test
After tilting, it is absorbed on the edge of the flat plate, slightly inclined, and is more suitable for typing.
The keyboard closes the screen and turns on the bright screen
194227.jpg_e600.jpg" />
The official size value is 303mm(L) × 179.5mm(W) × 10.1mm(H), and the weight is 887.1g. This is equivalent to the weight of the surface 3. It is still a bit difficult to use with a single hand-held device.
Even the keyboard has a weight of 1.2kg. If you travel, plus a charger, the travel weight will reach 1.3kg.

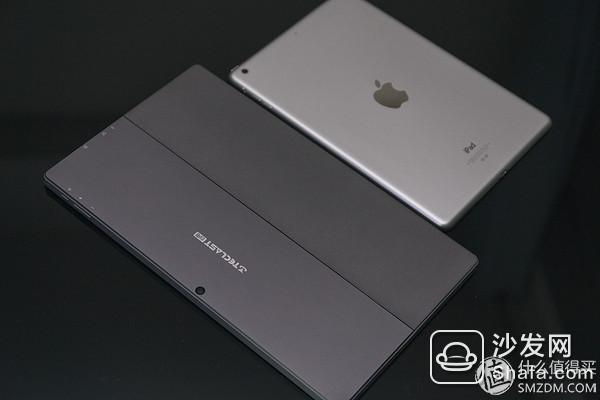

Compared with ipad air size, 11.6 inches vs 9.7 inches, but air is only 470g
Thickness, 10mm vs 7.5mm
Thanks to Intel's support for dual systems in hardware, the win+android tablet has become the mainstream of the market. However, the dual-system space has to be double overhead, and the partition is complex and re-installed with certain difficulties (of course, you can shovel android, However, they don't give up.) With such flat-panel hard disks generally not large, expansion can only rely on tf card. In short, the pros and cons have to self-balance.
After booting, there will be dual system options
The factory win10 has no pre-installed any other third-party software except for the inactive office 2016 and system switching app.
The built-in Android system is 6.0.1, preloaded with a lot of third-party software, but it can be uninstalled without any pressure. The official forum has the root program, this will not be launched. But Android gives me on this board. The first feeling is that the touch slider isn't very smooth, or it's a little lag. The number of frames is a lot lower than the nexus6p I usually use. So this is a touch problem, or if the intel wants to back the pot or the Taipower each system does not Optimized?
With self-start management, system switching app
Although with 8G of large memory, but Intel processors run android, due to the instruction set and other issues, compatibility is a test. Ever since, I installed the following common software and games
To my surprise, there are only three problems. In fact, it can be said to be two. Both versions of chrome have fc. Youku also has fc. Iqiyi will run perfectly.
On Tbook 16 power: Memory is never a problem
For this atom x7 8750, it was actually released in the first quarter of 16th, code-named cherry ntrail's 4 cores, clocked at 1600 to 2560Mhz, 14nm process, synchronized with the desktop-class CPU. Surface 3's CPU is x7 8xxx series Simply speaking. . This u is the core m Broadwell-Y younger brother. According to the intel design specification sdp (scenario design npower scenario design power consumption) is 2w how to understand this term, I think can be ignored, there will be life test
First come android, devcheck hardware list. The entertainment rabbit runs 7.6 watts and compares it with the mobile phone. According to the ranking of the company's official website in February, the 50th name is Samsung Note 5, with a score of 80644. The HD Graphics 405 used on the Z8750 is 16 EU units, and the 3dmark is Slingshot extreme scored 1290, similar to the Snapdragon 810. In the entire test, the processor is the highest frequency.
Geekbench, GPU4196, CPU Single Core 1064,
Android comes with google play, quite well received. The explosion is 1.4g version, wild car is 1.2g
Directly on Gamebench
The load of the processors in various game tests is not high, but the performance does not go up. Royal warfare and implosion are very smooth. Wild vehicles and pesticides are worse, but they can't play, but...
Attached to a video burst, except for the first time when the new move was posted, it was very smooth at other times.
CPUZ at a glance
PCmark home 1493, work 1719.
3Dmark.. For this kind of graphics card, the test is just to test the data.
Chess and winrar built-in testing
Aida64 memory benchmark
Finally... LOL combat. The entire game from loading to running is really challenging and patience. It's a bit unbearably slow. There is no waiting for a royal war.
Regardless of whether the screen is set to be low, low, minimum effect, the number of frames floats up and down in 25, patiently loaded, or you can play...
By the way, here's fever.. Usually about 40° standby, upper LOL...70° hit ~~
64G samsung MCG8GA, eMMC media, and atom x7 actually does not support ssd. eMMC is not as good as ssd, but how better than HDD. 64g capacity, if a win is a system, but also sub-android, The available space is invisible to others. An external tf becomes a necessity.
The prepared tf card is Kingston UHS-I Speed ​​U3, China Red, jd purchase 250 yuan
Do not understand why the slot of the slot is so wide...
After inserting prompts, this raises a problem. After tf is formatted in the android to become an internal storage space, win cannot be recognized. Therefore, it can only be formatted as an external storage. This will cause more software to be installed under android. Two tf card slots are perfect for the game
External USB hard drive perfect recognition
Win10 prompts to format in android formatted for internal storage
Win10 and Android under the Samsung MCG8GA read and write test. Android read and write 83/39 MB/s is slightly faster than win10 under 74/30 MB/s
Win10 read/write test of tf card, at about 70/50 MB/s, write speed is faster than the own MCG8GA
The figure above shows that the external hard disk usb3.0 is copied and written to the tf card. The figure below shows the writing of built-in storage (non-simultaneous operation).
Hardware is Realtek RTL8723BS, with Bluetooth. 802.11n MIMO single-stream + channel is not bundled (20Mhz), the rate is only poor 72 Mbps. With the WiFi under qq network transmission is only 1.5 MB/s a bit unbearable!
Bluetooth mouse operation is barrier-free
The report is inverted from CPUZ, the screen is Panasonic, and also from the Internet is also known as Chimei. 11.6 inch ips 1920x1080 with touch. In this size 100%UI to see the text is very difficult, the highest can only be adjusted to 150%, However, The high dpi scaling of many software is still the same as dross
No harm without comparison, I didn't think there was any problem before screen shot... Ipad air contrast screen photo The color temperature is a little cold, the color is a little bit biased
The following is the original picture ...
The battery power is 8500mAh, but in Android's devcheck, it only recognizes 4300mAh (the first part of the performance section)
Power management has no choice but to balance
Android under pcmark work 2.0 life time of 5 hours and 14 minutes (1/3 brightness), and Xiaolong 820 mobile phone almost
Win10 5 hours 20 minutes (1/3 brightness), personally feel that the results can be
Comes with a power plug to charge 5.2v*2a
Change htc QC3.0 to 2.3a...
8500mAh becomes quite slow under this charging efficiency....android uses 5 hours... 4 hours unwin10 reasons
This evaluation is basically so much.. I would like to believe that I can keep reading my heart has an answer
Good is obvious *win10+android 6.0 official forum can root program, can shovel android single brush win10 program fun to know toss is fun
* Travel weight 1.3kg, tablet, keyboard, Bluetooth, ready to work light, watch video
*8G memory, 2000 price is rare
* Built-in TF extension
* 11-inch 1080p display fine
* Magnesium alloy body work well
Insufficiency is also obvious* There is only one TF slot, even if you do not do two, do one more slot to store TF card
*Insufficient performance
* Screen color and brightness are generally
* Longer charge time
*android is not smooth
*wifi rate
Well, in fact, for this price point, we must be inclusive of its performance. Do not expect a small tablet to run out of the same level of desktop, especially high-load software and games. Usually used to play, write and write, do Do ppt, engage in excel, p-point map or send home the elderly, the last network, watch a video, speculation stocks can still easily deal with me personally, also WiFi speed I'm not satisfied.. other I will Just
The rest, pure pictures, you want to see the drop-down, do not want to see the first article can be closed, I wish you all more than a year in the roast more than a single test
